从0到1的ollvm-3-基于llvm-pass自制fla混淆

两只羊 Lv3
  2026-02-25 12:10:27 2026-02-25 12:10:27 创建   2026-02-25 22:14:16 2026-02-25 22:14:16 更新

MyOllvm

大致思路

对于每一个Function，我们要对其BasicBlock进行处理

这里我把其Block类型大致分为入口点的EntryBlock，其他的普通分支BasicBlock，和返回块EndBlock

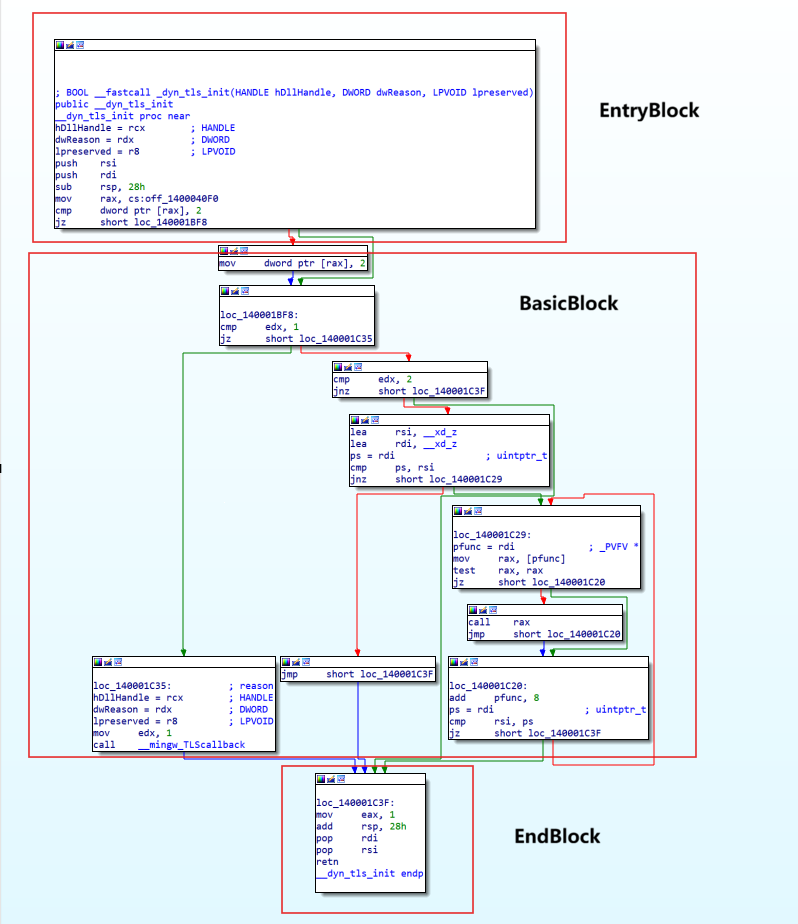

image-20260225124127316

我们要做的，就是在EntryBlock中新建一个SwitchValue变量，并建立一个SwitchValueBB块，根据当前SwitchValue的值，去控制下一个执行的Block。对于每个BasicBlock，我们先给其一个唯一的SwitchVal Key，用哈希表储存起来。然后再重新遍历所有的BasicBlock，将其后继对应的SwitchVal Key给SwitchValue赋值，再跳回SwitchValueBB块，删除原来的terminator，也就是原来的跳转指令。

代码编写

我们先用哈希表对每一个基本块都赋予一个唯一的switchValue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
std::default_random_engine e;
std::uniform_int_distribution<unsigned int> u(0,0xFFFFFFFF); // 左闭右闭区间
e.seed(time(0));

std::unordered_set<unsigned int> SwitchValSet;
std::unordered_map<BasicBlock*, unsigned int> SwitchValMap;
for(BasicBlock* BB: OriginalBasicBlocks) {
    unsigned int RandomSwitchVal = u(e);
    while(SwitchValSet.find(RandomSwitchVal) != SwitchValSet.end()) {
        RandomSwitchVal = u(e);
    }
    SwitchValMap[BB] = RandomSwitchVal;
}

for(BasicBlock* BB: OriginalBasicBlocks) {
    BB->print(errs());
    errs() << SwitchValMap[BB] << "\n";
}

然后要插入建立SwitchValue变量的指令

如果想要建立一条新建switchVar的指令，要插入在EntryBlock中，不然可能影响优化、也可能在某些 CFG/异常路径下不符合预期。

但如果直接在插入末尾，则会出现Basic Block in function ‘cmp’ does not have terminator!的错误

1
2
3
4
5
6
7
8
9
10
11
LLVMContext &Ctx = F.getContext();
//AllocaInst *Var = new AllocaInst(Type::getInt32Ty(F.getContext()), 0, "switchVar", EntryBlock);
//BasicBlock *initSwitchValBB = BasicBlock::Create(Ctx, "initSwitchValBB", &F, EntryBlock);

Instruction *IP = &*EntryBlock->getFirstInsertionPt(); // PHI之后最早插入点

IRBuilder<> Builder(Ctx);

Builder.SetInsertPoint(IP);
AllocaInst *SwitchValue = Builder.CreateAlloca(Type::getInt32Ty(Ctx), nullptr, "SwitchValue");
SwitchValue->setAlignment(Align(4));

BasicBlock 必须以 terminator 结束（br/ret/switch 等）。新建块后如果没插终结指令，IR 是非法的。

查看一波IR，SwitchValue已经在PHI之后最早插入点创建

1
2
3
4
5
6
7
8
9
10
11
12
define dso_local i32 @cmp(i32 noundef %0, i32 noundef %1) #0 {
  %SwitchValue = alloca i32, align 4
  %3 = alloca i32, align 4
  %4 = alloca i32, align 4
  %5 = alloca i32, align 4
  store i32 %0, i32* %3, align 4
  store i32 %1, i32* %4, align 4
  store i32 0, i32* %5, align 4
  %6 = load i32, i32* %3, align 4
  %7 = load i32, i32* %4, align 4
  %8 = icmp eq i32 %6, %7
  br label %SwitchValueBB

然后是创建一个SwitchValue分配handler块

这里需要注意switch的后继，最好设置为自己，不能设置为EntryBlock

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
BasicBlock *SwitchValueBB = BasicBlock::Create(Ctx, "SwitchValueBB", &F);

      IRBuilder<> DB(SwitchValueBB);
      Value *Cur = DB.CreateLoad(Type::getInt32Ty(Ctx), SwitchValue, "sv");

      // 默认跳转目标，随便选一个在函数里的块
      BasicBlock *DefaultTarget = SwitchValueBB;

      // 创建 switch 终结指令（它本身就是 terminator）
      SwitchInst *SW = DB.CreateSwitch(Cur, DefaultTarget, /*NumCases=*/0);
      for (BasicBlock *Target : OriginalBasicBlocks) {
          // 你也可以选择不把 entry 当 case，只要保证能到达就行
          unsigned int id = SwitchValMap[Target];
          SW->addCase(ConstantInt::get(Type::getInt32Ty(Ctx), id), Target);
      }

查看IR的效果

1
2
3
4
5
6
7
8
9
10
11
SwitchValueBB:                                    ; preds = %16, %15, %14, %10, %9, %2, %SwitchValueBB
  %sv = load i32, i32* %SwitchValue, align 4
  switch i32 %sv, label %SwitchValueBB [
    i32 -2058324383, label %9
    i32 1176119844, label %10
    i32 -93860928, label %14
    i32 971602666, label %15
    i32 1944500023, label %16
    i32 -1727544718, label %17
  ]
}

然后就是对每个BasicBlock的关键处理

对于ret块，switch/indirectbr，我们直接略过不处理。

对于单一的无条件跳转，我们获取其后继哈希表对应的SwitchValue，在结尾进行赋值

对于条件跳转，我们需要分别获取条件True和False时对应产生的后继，并从哈希表获取对应的SwitchValue，通过创建select指令来给SwitchValue赋值

最后对于处理的情况，还需要将原terminator删除，使其都直接跳转到SwitchValueBB

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
for (BasicBlock &BB : F) {

    Instruction *Term = BB.getTerminator();
    if (!Term) continue;

    // 4.1 return 块：不处理
    if (isa<ReturnInst>(Term)) {
        continue;
    }
    //errs() <<"aaaaaaaaaaaaaaaaaaaaaaaaaa" <<"\n";
    // 仅处理 br（你描述的场景：后继数=1 或 条件判断）
    auto *Br = dyn_cast<BranchInst>(Term);
    if (!Br) {
        // 如果还有 switch/indirectbr 等，你可以在这里扩展
        continue;
    }

    Builder.SetInsertPoint(Term);

    // 4.2 无条件跳转：SwitchValue = map[succ]
    if (Br->isUnconditional()) {
        //errs() <<"bbbbbbbbbbbbbbbbbbbbbbbbbb" <<"\n";
        BasicBlock *Succ = Br->getSuccessor(0);
        //auto It = SwitchValMap.find(Succ);
        //if (It == SwitchValMap.end()) continue; // succ 不在 map（理论上不该发生）
        //errs() <<"ccccccccccccccccccccccccc" <<"\n";
        errs() << SwitchValMap[Succ] << "\n";
        StoreInst *SI = Builder.CreateStore(
            ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[Succ]),
            SwitchValue
        );
        SI->setAlignment(Align(4));

    } else {
        // 4.3 条件分支：根据 cond 选择 succ0/succ1 的值
        // br i1 %cond, label %T, label %F
        Value *Cond = Br->getCondition();
        BasicBlock *TrueSucc  = Br->getSuccessor(0);
        BasicBlock *FalseSucc = Br->getSuccessor(1);

        //auto ItT = SwitchValMap.find(TrueSucc);
        //auto ItF = SwitchValMap.find(FalseSucc);
        //if (ItT == SwitchValMap.end() || ItF == SwitchValMap.end()) continue;

        Value *TV = ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[TrueSucc]);
        Value *FV = ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[FalseSucc]);

        // 用 select 生成一个 i32 值，然后 store 一次
        // %v = select i1 %cond, i32 TV, i32 FV
        Value *Sel = Builder.CreateSelect(Cond, TV, FV, "switch.sel");

        StoreInst *SI = Builder.CreateStore(Sel, SwitchValue);
        SI->setAlignment(Align(4));
    }



    Builder.CreateBr(SwitchValueBB);

    // 删除旧 terminator（否则一个BB会有两个 terminator，IR 非法）
    Term->eraseFromParent();
}

再看一波生成的IR，已经没问题了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
define dso_local i32 @cmp(i32 noundef %0, i32 noundef %1) #0 {
  %SwitchValue = alloca i32, align 4
  %3 = alloca i32, align 4
  %4 = alloca i32, align 4
  %5 = alloca i32, align 4
  store i32 %0, i32* %3, align 4
  store i32 %1, i32* %4, align 4
  store i32 0, i32* %5, align 4
  %6 = load i32, i32* %3, align 4
  %7 = load i32, i32* %4, align 4
  %8 = icmp eq i32 %6, %7
  %switch.sel = select i1 %8, i32 -2058324383, i32 1176119844
  store i32 %switch.sel, i32* %SwitchValue, align 4
  br label %SwitchValueBB

9:                                                ; preds = %SwitchValueBB
  store i32 0, i32* %5, align 4
  store i32 -1727544718, i32* %SwitchValue, align 4
  br label %SwitchValueBB

10:                                               ; preds = %SwitchValueBB
  %11 = load i32, i32* %3, align 4
  %12 = load i32, i32* %4, align 4
  %13 = icmp slt i32 %11, %12
  %switch.sel1 = select i1 %13, i32 -93860928, i32 971602666
  store i32 %switch.sel1, i32* %SwitchValue, align 4
  br label %SwitchValueBB

14:                                               ; preds = %SwitchValueBB
  store i32 1, i32* %5, align 4
  store i32 1944500023, i32* %SwitchValue, align 4
  br label %SwitchValueBB

15:                                               ; preds = %SwitchValueBB
  store i32 2, i32* %5, align 4
  store i32 1944500023, i32* %SwitchValue, align 4
  br label %SwitchValueBB

16:                                               ; preds = %SwitchValueBB
  store i32 -1727544718, i32* %SwitchValue, align 4
  br label %SwitchValueBB

17:                                               ; preds = %SwitchValueBB
  %18 = load i32, i32* %5, align 4
  ret i32 %18

SwitchValueBB:                                    ; preds = %16, %15, %14, %10, %9, %2, %SwitchValueBB
  %sv = load i32, i32* %SwitchValue, align 4
  switch i32 %sv, label %SwitchValueBB [
    i32 -2058324383, label %9
    i32 1176119844, label %10
    i32 -93860928, label %14
    i32 971602666, label %15
    i32 1944500023, label %16
    i32 -1727544718, label %17
  ]
}

最终效果

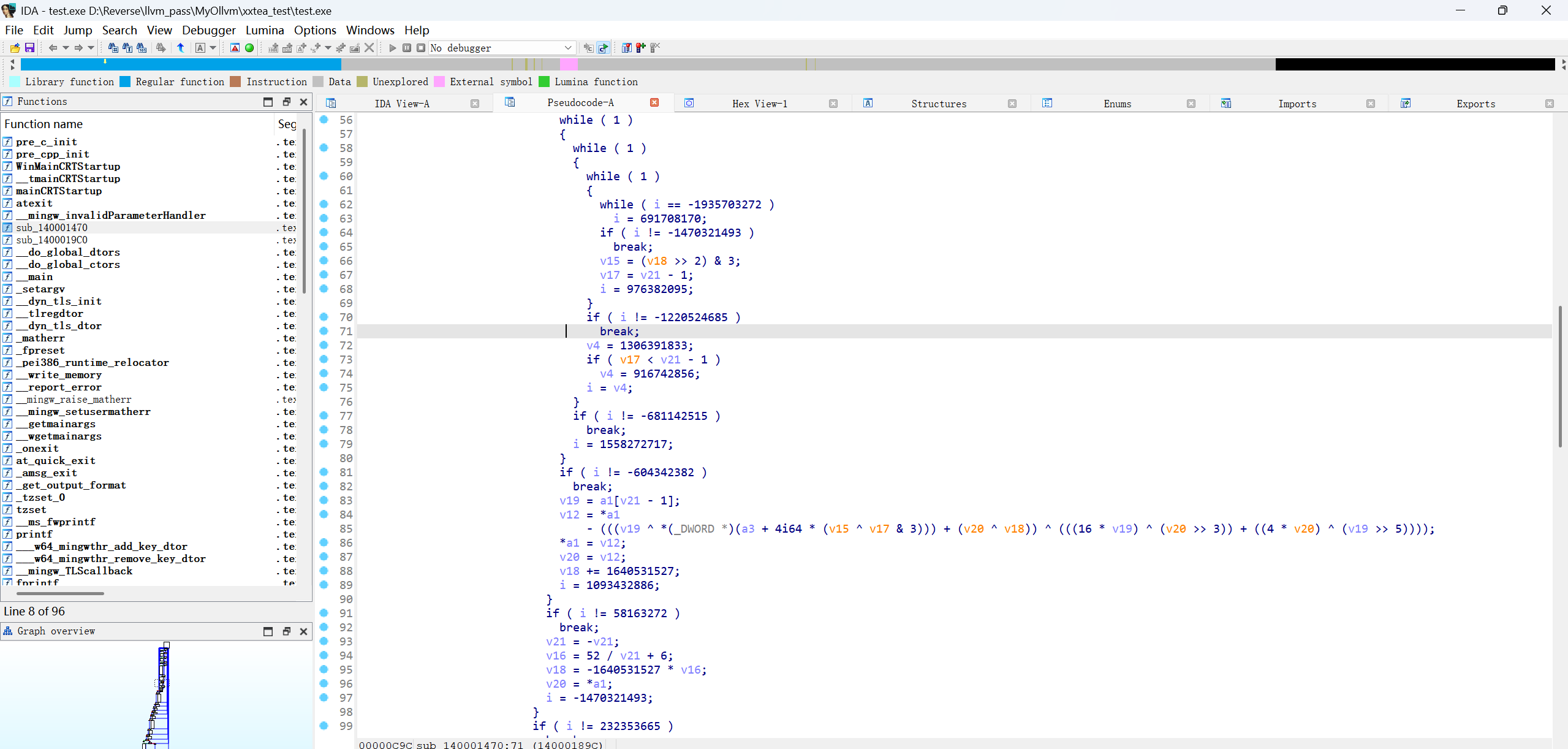

用一个较复杂的xxtea算法测试一下，发现能够生成fla的实际效果，虽然cfg看起来一点也不平坦就是了

image-20260225120003246

最后的完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
PreservedAnalyses run(Function &F, FunctionAnalysisManager &FAM) {

    errs() << "Function Name: " << F.getName() << "\n";
    //errs() << "Block Count:   " << F.size() << "\n";
    std::vector<BasicBlock*> OriginalBasicBlocks;
    BasicBlock* EntryBlock = &F.getEntryBlock();
    for (BasicBlock &BB : F) {
        if(&BB != EntryBlock) {
            OriginalBasicBlocks.push_back(&BB);
        }
        /*StringRef bbName = BB.getName();
        errs() << "  -> BasicBlock Name: ";
        if (bbName.empty()) {
            errs() << "[Unnamed/Numbered]";
        } else {
            errs() << bbName;
        }
        for (Instruction &I : BB) {
            errs() << "      " << I << "\n";
        }
        BB.print(errs()); */
    }

    auto &BBList = F.getBasicBlockList();

    std::default_random_engine e;
    std::uniform_int_distribution<unsigned int> u(0,0xFFFFFFFF); // 左闭右闭区间
    e.seed(time(0));

    std::unordered_set<unsigned int> SwitchValSet;
    std::unordered_map<BasicBlock*, unsigned int> SwitchValMap;
    for(BasicBlock* BB: OriginalBasicBlocks) {
        unsigned int RandomSwitchVal = u(e);
        while(SwitchValSet.find(RandomSwitchVal) != SwitchValSet.end()) {
            RandomSwitchVal = u(e);
        }
        SwitchValSet.insert(RandomSwitchVal);
        SwitchValMap[BB] = RandomSwitchVal;
    }

    /*for(BasicBlock* BB: OriginalBasicBlocks) {
        BB->print(errs());
        errs() << SwitchValMap[BB] << "\n";
    }*/

    LLVMContext &Ctx = F.getContext();

    Instruction *IP = &*EntryBlock->getFirstInsertionPt(); // PHI之后最早插入点

    IRBuilder<> Builder(Ctx);

    Builder.SetInsertPoint(IP);
    AllocaInst *SwitchValue = Builder.CreateAlloca(Type::getInt32Ty(Ctx), nullptr, "SwitchValue");
    SwitchValue->setAlignment(Align(4));

    BasicBlock *SwitchValueBB = BasicBlock::Create(Ctx, "SwitchValueBB", &F);

    IRBuilder<> DB(SwitchValueBB);
    Value *Cur = DB.CreateLoad(Type::getInt32Ty(Ctx), SwitchValue, "sv");

    BasicBlock *DefaultTarget = SwitchValueBB;

    SwitchInst *SW = DB.CreateSwitch(Cur, DefaultTarget, 0);
    for (BasicBlock *Target : OriginalBasicBlocks) {
        unsigned int id = SwitchValMap[Target];
        SW->addCase(ConstantInt::get(Type::getInt32Ty(Ctx), id), Target);
    }

    for (BasicBlock &BB : F) {

        Instruction *Term = BB.getTerminator();
        if (!Term) continue;

        // 4.1 return 块：不处理
        if (isa<ReturnInst>(Term)) {
            continue;
        }
        // 仅处理 br（后继数=1 或 条件判断）
        auto *Br = dyn_cast<BranchInst>(Term);
        if (!Br) {
            continue;
        }

        Builder.SetInsertPoint(Term);

        // 4.2 无条件跳转：SwitchValue = map[succ]
        if (Br->isUnconditional()) {
            BasicBlock *Succ = Br->getSuccessor(0);
            //errs() << SwitchValMap[Succ] << "\n";
            StoreInst *SI = Builder.CreateStore(
                ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[Succ]),
                SwitchValue
            );
            SI->setAlignment(Align(4));

        } else {
            // 4.3 条件分支：根据 cond 选择 succ0/succ1 的值
            // br i1 %cond, label %T, label %F
            Value *Cond = Br->getCondition();
            BasicBlock *TrueSucc  = Br->getSuccessor(0);
            BasicBlock *FalseSucc = Br->getSuccessor(1);

            Value *TV = ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[TrueSucc]);
            Value *FV = ConstantInt::get(Type::getInt32Ty(Ctx), SwitchValMap[FalseSucc]);

            // 用 select 生成一个 i32 值，然后 store 一次
            // %v = select i1 %cond, i32 TV, i32 FV
            Value *Sel = Builder.CreateSelect(Cond, TV, FV, "switch.sel");

            StoreInst *SI = Builder.CreateStore(Sel, SwitchValue);
            SI->setAlignment(Align(4));
        }



        Builder.CreateBr(SwitchValueBB);

        // 删除旧 terminator（否则一个BB会有两个 terminator，IR 非法）
        Term->eraseFromParent();
    }

    return PreservedAnalyses::none();
}
