Frida学习-Android9下的Java层函数Hook原理

从ArtMethod变化观测

众所周知，Frida在native层的hook是通过inline hook实现的，就是在函数开头修改字节码，跳转到自己的trampoline函数，这个不难理解，也并非Frida所独有的。/但Frida真正强大的，在于其Java层函数Hook的功能。

在此次学习中，我选用Android9 ARM64作为测试环境。

接下来写一段最简单的代码，通过对add_test函数分析，来学习Frida的Java Hook原理

package twogoat.opsu3.artmethod2;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

import twogoat.opsu3.artmethod2.databinding.ActivityMainBinding;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    // Used to load the 'artmethod2' library on application startup.
    static {
        System.loadLibrary("artmethod2");
    }


    public int add_test(int a, int b) {
        int res = a + b;
        return res;
    }
    private ActivityMainBinding binding;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        binding = ActivityMainBinding.inflate(getLayoutInflater());
        setContentView(binding.getRoot());

        // Example of a call to a native method
        TextView tv = binding.sampleText;
        tv.setText(stringFromJNI());

        Button button = findViewById(R.id.button);
        button.setOnClickListener(this);
    }

    @Override
    public void onClick(View v) {
        add_test(1, 2);
        stringFromJNI();
    }

    /**
     * A native method that is implemented by the 'artmethod2' native library,
     * which is packaged with this application.
     */
    public native String stringFromJNI();
}

现代的安卓Art虚拟机中，Java层的一个个函数，本质上就是一个个ArtMethod对象，接下来查看一波源码中的关键结构

class ArtMethod FINAL {
	  ArtMethod() : access_flags_(0), dex_code_item_offset_(0), dex_method_index_(0),
      method_index_(0), hotness_count_(0) { }
       protected:
  		GcRoot<mirror::Class> declaring_class_;


        std::atomic<std::uint32_t> access_flags_;


        uint32_t dex_code_item_offset_;
        uint32_t dex_method_index_;
        uint16_t method_index_;
        uint16_t hotness_count_;

      struct PtrSizedFields {
        void* data_;
        void* entry_point_from_quick_compiled_code_;
      } ptr_sized_fields_;
}

接下来简单介绍一下各字段的含义

重点在access_flags，dex_code_item_offset和ptr_sized_fields_.entry_point_from_quick_compiled_code

字段	含义
declaring_class_	该方法所属的类，也就是声明这个方法的 Class 对象。例如 A.foo() 中就是 A.class。
access_flags_	方法访问标志位，如 public、private、static、final、native、abstract、constructor 等。是按位组合的标志。
dex_code_item_offset_	方法在 dex 文件中对应 code_item 的偏移。普通 Java 方法靠它找到字节码；抽象方法、native 方法通常没有有效 code item。
dex_method_index_	该方法在 dex 文件 method_ids 表中的索引，用来定位方法声明信息：类、方法名、参数、返回值。
method_index_	ART 内部方法索引。对虚方法通常是 vtable index；对接口方法可能和 imtable/接口分发表相关；对 direct method 则是类方法表中的索引。
hotness_count_	热度计数。ART 用它统计方法执行频率，辅助 JIT 编译、热点优化等。
ptr_sized_fields_.data_	指针大小相关字段之一，含义随方法类型变化。对 native 方法常保存 JNI 函数地址或 native 相关数据；对普通方法可能和解释执行/Profiling/Runtime 数据有关。
ptr_sized_fields_.entry_point_from_quick_compiled_code_	quick compiled code 的入口地址。方法被调用时，如果有已编译机器码，就跳到这里执行；否则可能指向解释器桥、JNI bridge、resolution trampoline 等。

接下来仿照上面的结构体，尝试读出真实运行时，add_test函数的个字段含义

void DumpArtMethod(jmethodID method_id) {
    if (method_id == nullptr) {
        LOGE("add_test jmethodID is null");
        return;
    }

    const void *art_method = reinterpret_cast<const void *>(method_id);
    const size_t ptr_sized_fields_offset = PtrSizedFieldsOffset();
    const size_t data_offset = ptr_sized_fields_offset;
    const size_t quick_code_offset = ptr_sized_fields_offset + sizeof(void *);
    const size_t art_method_size = ptr_sized_fields_offset + 2 * sizeof(void *);

    const uint32_t declaring_class = ReadField<uint32_t>(art_method, kDeclaringClassOffset);
    const uint32_t access_flags = ReadField<uint32_t>(art_method, kAccessFlagsOffset);
    const uint32_t dex_code_item_offset = ReadField<uint32_t>(
            art_method, kDexCodeItemOffsetOffset);
    const uint32_t dex_method_index = ReadField<uint32_t>(
            art_method, kDexMethodIndexOffset);
    const uint16_t method_index = ReadField<uint16_t>(art_method, kMethodIndexOffset);
    const uint16_t hotness_count = ReadField<uint16_t>(art_method, kHotnessCountOffset);
    const uintptr_t data = ReadPtrSizedField(art_method, data_offset);
    const uintptr_t quick_code = ReadPtrSizedField(art_method, quick_code_offset);

    LOGI("add_test ArtMethod=%p pointer_size=%zu art_method_size=0x%zx",
         art_method, sizeof(void *), art_method_size);
    LOGI("  offsets: declaring_class_=0x%zx access_flags_=0x%zx"
         " dex_code_item_offset_=0x%zx dex_method_index_=0x%zx"
         " method_index_=0x%zx hotness_count_=0x%zx",
         kDeclaringClassOffset, kAccessFlagsOffset,
         kDexCodeItemOffsetOffset, kDexMethodIndexOffset,
         kMethodIndexOffset, kHotnessCountOffset);
    LOGI("  offsets: ptr_sized_fields_=0x%zx data_=0x%zx quick_code=0x%zx",
         ptr_sized_fields_offset, data_offset, quick_code_offset);

    LOGI("  declaring_class_=0x%08" PRIx32, declaring_class);
    LOGI("  access_flags_=0x%08" PRIx32
         " java_flags=0x%04" PRIx32
         " runtime_flags=0x%08" PRIx32
         " hidden_api=%s",
         access_flags, access_flags & kAccJavaFlagsMask,
         access_flags & ~kAccJavaFlagsMask, HiddenApiListName(access_flags));
    LOGI("  access_flags_: %s", AccessFlagNames(access_flags).c_str());
    LOGI("  dex_code_item_offset_=0x%08" PRIx32 " (%" PRIu32 ")",
         dex_code_item_offset, dex_code_item_offset);
    LOGI("  dex_method_index_=0x%08" PRIx32 " (%" PRIu32 ")",
         dex_method_index, dex_method_index);
    LOGI("  method_index_=0x%04x (%u)",
         static_cast<unsigned>(method_index), static_cast<unsigned>(method_index));
    LOGI("  hotness_count_=0x%04x (%u)",
         static_cast<unsigned>(hotness_count), static_cast<unsigned>(hotness_count));
    LOGI("  ptr_sized_fields_.data_=%s",
         DescribeAddress(reinterpret_cast<const void *>(data)).c_str());
    LOGI("  ptr_sized_fields_.entry_point_from_quick_compiled_code_=%s",
         DescribeAddress(reinterpret_cast<const void *>(quick_code)).c_str());

    DumpBytes("  ArtMethod raw bytes", art_method, art_method_size);
    DumpDexCodeItem(dex_method_index, dex_code_item_offset);
    DumpBytes("  quick_code bytes", reinterpret_cast<const void *>(quick_code), 32);
}

运行程序后，ArtMethod结构体解析如下

, add_test ArtMethod=0x787e628400 pointer_size=8 art_method_size=0x28
,   offsets: declaring_class_=0x0 access_flags_=0x4 dex_code_item_offset_=0x8 dex_method_index_=0xc method_index_=0x10 hotness_count_=0x12
,   offsets: ptr_sized_fields_=0x18 data_=0x18 quick_code=0x20
,   declaring_class_=0x170c7598
,   access_flags_=0x08080001 java_flags=0x0001 runtime_flags=0x08080000 hidden_api=whitelist
,   access_flags_: kAccPublic|kAccSkipAccessChecks/kAccFastNative|kAccSingleImplementation
,   dex_code_item_offset_=0x000002b4 (692)
,   dex_method_index_=0x00000007 (7)
,   method_index_=0x023e (574)
,   hotness_count_=0x0000 (0)
,   ptr_sized_fields_.data_=0x0
,   ptr_sized_fields_.entry_point_from_quick_compiled_code_=0x7884116aa0 /system/lib64/libart.so+0x536aa0
,   ArtMethod raw bytes address=0x787e628400 size=0x28
,     +0x0000: 98 75 0c 17 01 00 08 08 b4 02 00 00 07 00 00 00
,     +0x0010: 3e 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
,     +0x0020: a0 6a 11 84 78 00 00 00
,   quick_code bytes address=0x7884116aa0 size=0x20
,     +0x0000: 90 06 00 90 10 b6 46 f9 10 02 40 f9 10 0a 40 f9
,     +0x0010: ff 83 03 d1 e0 07 01 6d e2 0f 02 6d e4 17 03 6d

可以看到在一开始，access_flags属性为kAccPublic | kAccSkipAccessChecks / kAccFastNative | kAccSingleImplementation

各标志位含义如下

标志	含义
kAccPublic	方法是 public，可公开访问。
kAccSkipAccessChecks	ART 运行时调用该方法时跳过访问权限检查。常见于已验证、可信或运行时生成/特殊处理的方法。
kAccFastNative	表示这是一个 fast JNI native 方法。JNI 调用开销更低，但 GC/线程状态处理限制更多。
kAccSingleImplementation	表示该方法在当前类层次/接口分派中只有一个实现，ART 可用它做优化，比如内联、去虚化调用。

虽然还看不太出什么，但可以看到entry_point_from_quick_compiled_code_执行的是/system/lib64/libart.so+0x536aa0

但在实际动态过程中，发现其实其应该是偏移0x55DAA0的地方，不过问题不大，我们继续来分析

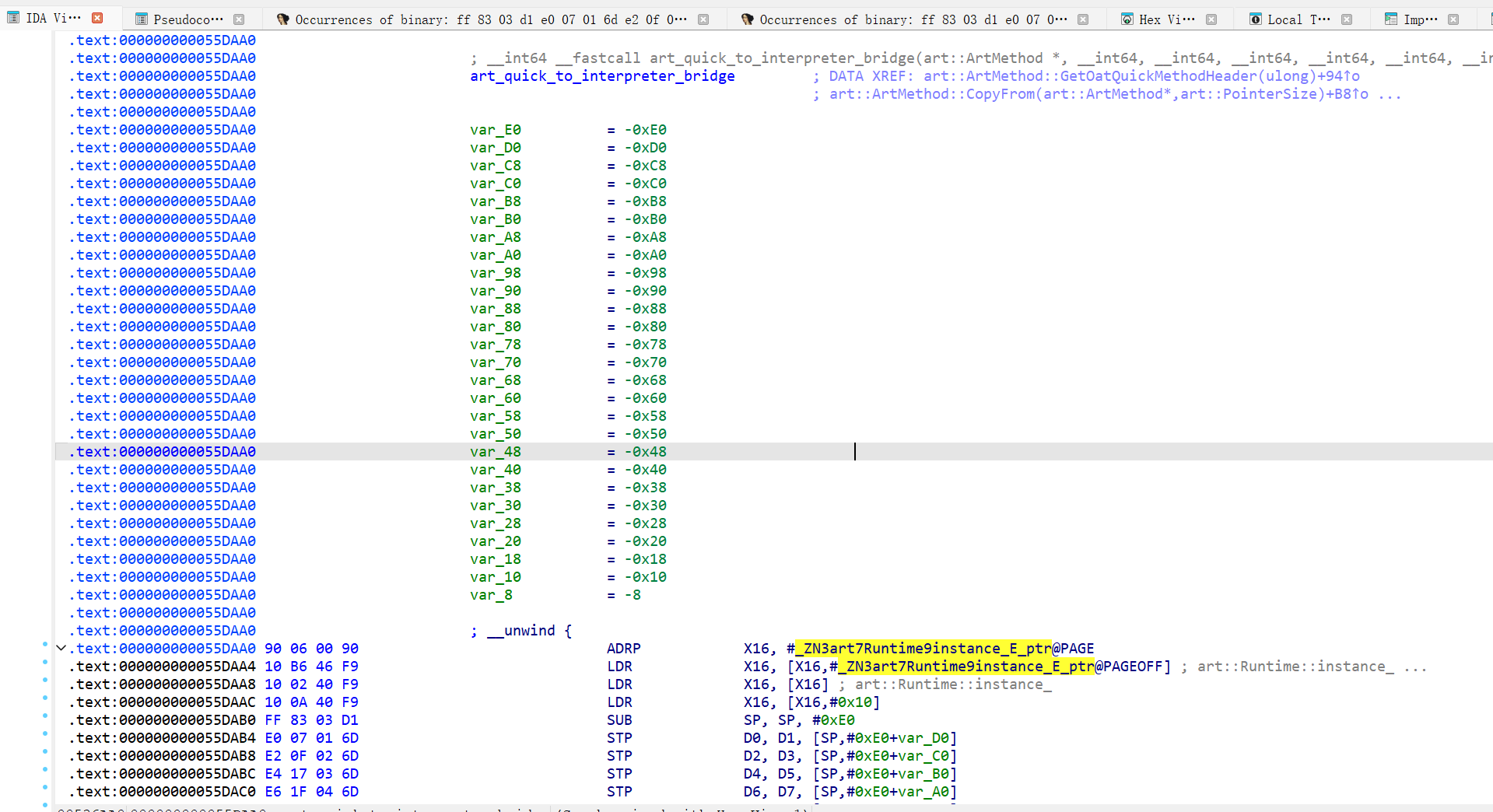

在/system/lib64/libart.so+0x55DAA0，函数名为art_quick_to_interpreter_bridge ，它的核心功能为

1. 接收 quick 调用约定传来的参数
2. 构造解释器需要的 ShadowFrame
3. 找到 dex code item
4. 调用 ART interpreter
5. 把解释器执行结果按 quick 调用约定返回

它本质上是一个调用约定转换器

这表示add_test方法还没被编译为可用的字节码，需要跳转到解释器，从dex文件中找出方法定义的字节码

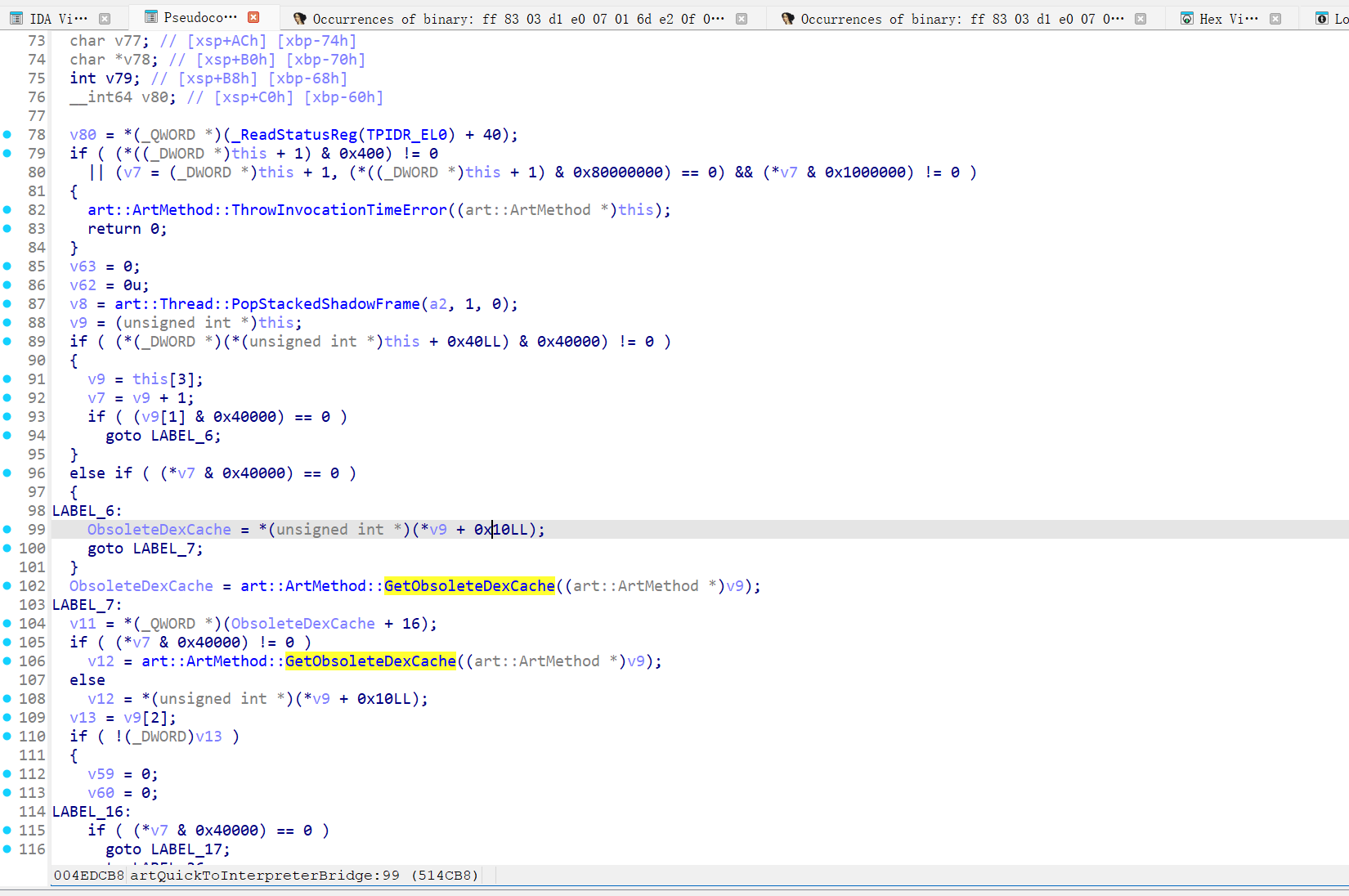

在内层的artQuickToInterpreterBridge中，也可以看到包含”dex”名的函数调用

接下来编写一个最简单的脚本去hook add_test

function hook_add()
{
    Java.perform(function(){
        var MainActivity = Java.use("twogoat.opsu3.artmethod2.MainActivity")
        var add_test = MainActivity.add_test.overload('int', 'int')
        add_test.implementation = function(a, b){
            console.log(`add_test => ${a} ${b}` )
            //dumpFridaMangler(add_test)
            var result = add_test.call(this, a, b)
            console.log(`add_test res => ${result}`)
            return result
        }
        console.log('[Frida] add_test hook installed')
        //dumpFridaMangler(add_test)
    })
}

在hook成功后再去查看add_test的ArtMethod结构，发现果然被修改了

I  add_test ArtMethod=0x78690c7400 pointer_size=8 art_method_size=0x28
I    offsets: declaring_class_=0x0 access_flags_=0x4 dex_code_item_offset_=0x8 dex_method_index_=0xc method_index_=0x10 hotness_count_=0x12
I    offsets: ptr_sized_fields_=0x18 data_=0x18 quick_code=0x20
I    declaring_class_=0x16f46158
I    access_flags_=0x02000001 java_flags=0x0001 runtime_flags=0x02000000 hidden_api=whitelist
I    access_flags_: kAccPublic|kAccCompileDontBother
I    dex_code_item_offset_=0x000002b4 (692)
I    dex_method_index_=0x00000007 (7)
I    method_index_=0x023e (574)
I    hotness_count_=0x0000 (0)
I    ptr_sized_fields_.data_=0x0
I    ptr_sized_fields_.entry_point_from_quick_compiled_code_=0x7884116aa0 /system/lib64/libart.so+0x536aa0
I    ArtMethod raw bytes address=0x78690c7400 size=0x28
I      +0x0000: 58 61 f4 16 01 00 00 02 b4 02 00 00 07 00 00 00
I      +0x0010: 3e 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
I      +0x0020: a0 6a 11 84 78 00 00 00
I    quick_code bytes address=0x7884116aa0 size=0x20
I      +0x0000: 50 00 00 58 00 02 1f d6 00 5f db 04 79 00 00 00
I      +0x0010: ff 83 03 d1 e0 07 01 6d e2 0f 02 6d e4 17 03 6d

access_flags_现在除了kAccPublic只剩下了kAccCompileDontBother，他的含义为不要再尝试编译这个方法

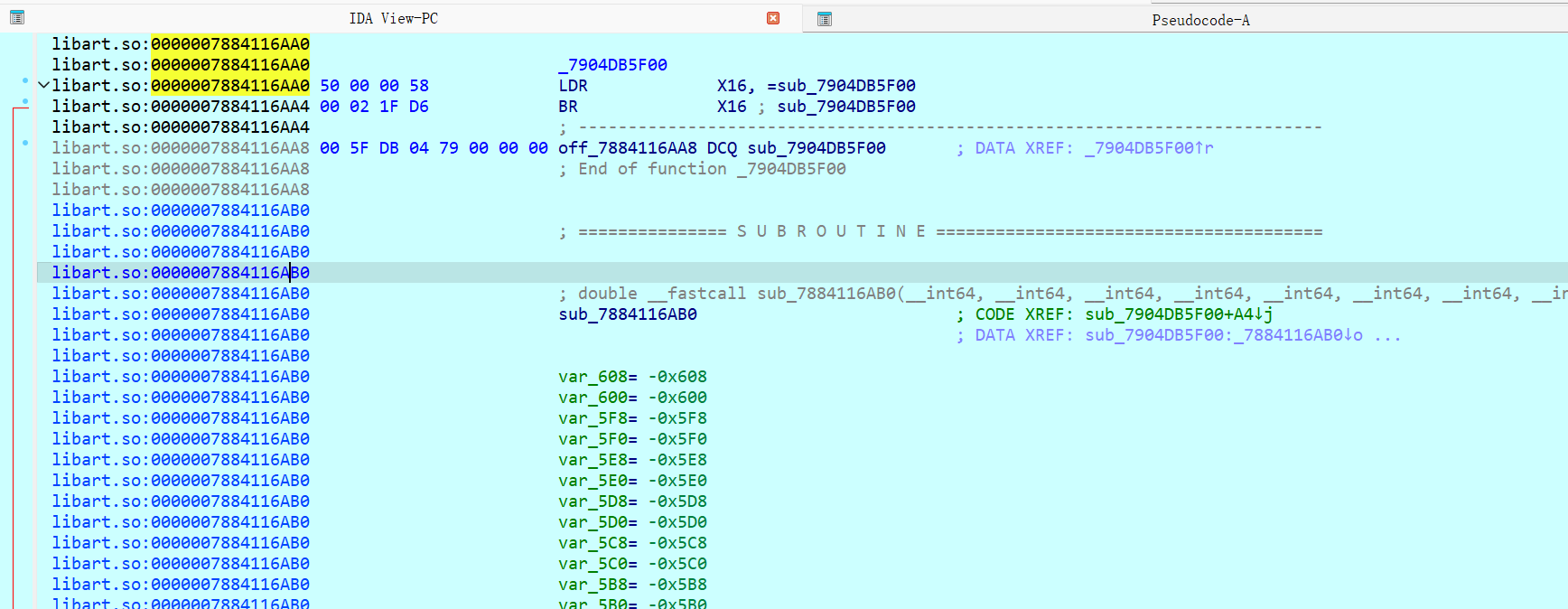

但问题又来了entry_point_from_quick_compiled_code_仍然指向art_quick_to_interpreter_bridge（0x7884116AA0），似乎没有发生任何变化。不过可以看到的是，art_quick_to_interpreter_bridge的函数头明显发生了变化，接下来尝试动调可以看到，进行了一个inline hook的操作，这里跳转到的sub_7904db5f00应该就是Frida的自己的trampoline了

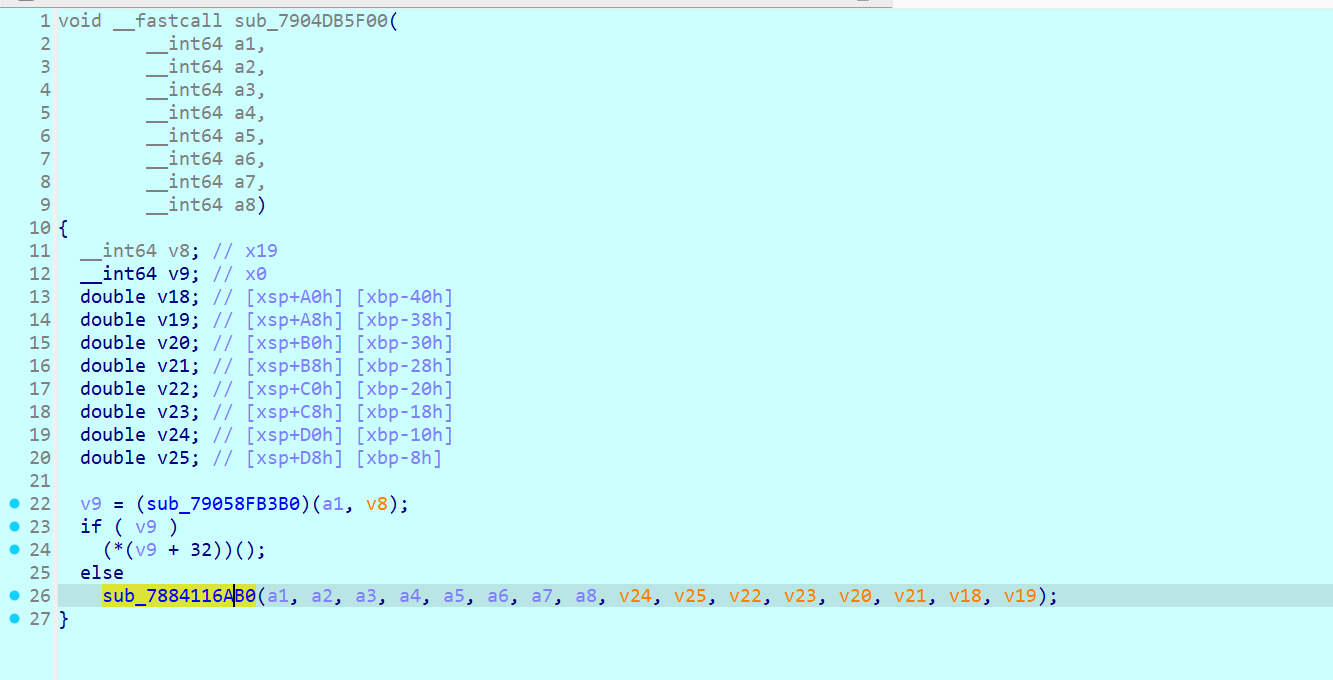

可以看到在调用sub_79058FB3B0后，根据结果是走它分配的对象函数或者走原来的art_quick_to_interpreter_bridge逻辑

这里sub_79058FB3B0没太看懂，有点复杂。

在之前的理论学习中，我了解到的是Frida会把art_quick_to_interpreter_bridge改为art_quick_generic_jni_trampoline，并把entry_point_from_jni_改为对应的implementation的hook方法。

但在android9下看起来并非如此，首先ArtMethod中既没有entry_point_from_jni_这个字段，其次在art_quick_generic_jni_trampoline下断点后，最终也并没有断住。

那么接下来需要结合实际的源码去分析一下了

Frida源码分析

查看frida-java-bridge-6.2.7/lib/android.js后，可以确认0x7904db5f00为writeArtQuickCodeReplacementTrampolineArm64，而0x79058FB3B0为的find_replacement_method_from_quick_code。

先来看看writeArtQuickCodeReplacementTrampolineArm64，它在trampoline中通过写入纯机器码的形式，实现了保存寄存器等操作，并调用了findReplacementFromQuickCode

function writeArtQuickCodeReplacementTrampolineArm64 (trampoline, target, redirectSize, { availableScratchRegs }, vm) {
  const artMethodOffsets = getArtMethodSpec(vm).offset;

  let offset;
  Memory.patchCode(trampoline, 256, code => {
    const writer = new Arm64Writer(code, { pc: trampoline });
    const relocator = new Arm64Relocator(target, writer);

    // Save FPRs.
    writer.putPushRegReg('d0', 'd1');
    writer.putPushRegReg('d2', 'd3');
    writer.putPushRegReg('d4', 'd5');
    writer.putPushRegReg('d6', 'd7');

    // Save core args, callee-saves & LR.
    writer.putPushRegReg('x1', 'x2');
    writer.putPushRegReg('x3', 'x4');
    writer.putPushRegReg('x5', 'x6');
    writer.putPushRegReg('x7', 'x20');
    writer.putPushRegReg('x21', 'x22');
    writer.putPushRegReg('x23', 'x24');
    writer.putPushRegReg('x25', 'x26');
    writer.putPushRegReg('x27', 'x28');
    writer.putPushRegReg('x29', 'lr');

    // Save ArtMethod* + alignment padding.
    writer.putSubRegRegImm('sp', 'sp', 16);
    writer.putStrRegRegOffset('x0', 'sp', 0);

    writer.putCallAddressWithArguments(artController.replacedMethods.findReplacementFromQuickCode, ['x0', 'x19']);

    writer.putCmpRegReg('x0', 'xzr');
    writer.putBCondLabel('eq', 'restore_registers');

    // Set value of x0 in the current frame.
    writer.putStrRegRegOffset('x0', 'sp', 0);

    writer.putLabel('restore_registers');

    // Restore ArtMethod*
    writer.putLdrRegRegOffset('x0', 'sp', 0);
    writer.putAddRegRegImm('sp', 'sp', 16);

    // Restore core args, callee-saves & LR.
    writer.putPopRegReg('x29', 'lr');
    writer.putPopRegReg('x27', 'x28');
    writer.putPopRegReg('x25', 'x26');
    writer.putPopRegReg('x23', 'x24');
    writer.putPopRegReg('x21', 'x22');
    writer.putPopRegReg('x7', 'x20');
    writer.putPopRegReg('x5', 'x6');
    writer.putPopRegReg('x3', 'x4');
    writer.putPopRegReg('x1', 'x2');

    // Restore FPRs.
    writer.putPopRegReg('d6', 'd7');
    writer.putPopRegReg('d4', 'd5');
    writer.putPopRegReg('d2', 'd3');
    writer.putPopRegReg('d0', 'd1');

    writer.putBCondLabel('ne', 'invoke_replacement');

    do {
      offset = relocator.readOne();
    } while (offset < redirectSize && !relocator.eoi);

    relocator.writeAll();

    if (!relocator.eoi) {
      const scratchReg = Array.from(availableScratchRegs)[0];
      writer.putLdrRegAddress(scratchReg, target.add(offset));
      writer.putBrReg(scratchReg);
    }

    writer.putLabel('invoke_replacement');

    writer.putLdrRegRegOffset('x16', 'x0', artMethodOffsets.quickCode);
    writer.putBrReg('x16');

    writer.flush();
  });

  return offset;
}

大概表示为它先保存参数寄存器，调用一个 Frida 查表函数，返回非零就把 x0 改成 replacement ArtMethod，再跳 replacement->quick_code；返回零才继续走原始 art_quick_to_interpreter_bridge。

保存 x1-x7 / d0-d7 / x20-x30
保存 x0，也就是 ArtMethod* A
mov x1, x19          ; x19 是 art::Thread*
bl  0x79058FB3B0     ; findReplacementFromQuickCode(A, thread)
cmp x0, xzr

如果 x0 == 0:
    恢复 A
    执行被搬走的 art_quick_to_interpreter_bridge 原始指令
    跳回 0x7884116AB0

如果 x0 != 0:
    x0 = B
    ldr x16, [x0, #0x20]
    br x16

接下来再看看replace的实现

replace (impl, isInstanceMethod, argTypes, vm, api) {
  const { kAccCompileDontBother, artNterpEntryPoint } = api;

  this.originalMethod = fetchArtMethod(this.methodId, vm);

  const originalFlags = this.originalMethod.accessFlags;

  if ((originalFlags & kAccXposedHookedMethod) !== 0 && xposedIsSupported()) {
    const hookInfo = this.originalMethod.jniCode;
    this.hookedMethodId = hookInfo.add(2 * pointerSize).readPointer();
    this.originalMethod = fetchArtMethod(this.hookedMethodId, vm);
  }

  const { hookedMethodId } = this;

  const replacementMethodId = cloneArtMethod(hookedMethodId, vm);
  this.replacementMethodId = replacementMethodId;

  patchArtMethod(replacementMethodId, {
    jniCode: impl,
    accessFlags: ((originalFlags & ~(kAccCriticalNative | kAccFastNative | kAccNterpEntryPointFastPathFlag)) | kAccNative | kAccCompileDontBother) >>> 0,
    quickCode: api.artClassLinker.quickGenericJniTrampoline,
    interpreterCode: api.artInterpreterToCompiledCodeBridge
  }, vm);

  // Remove kAccFastInterpreterToInterpreterInvoke and kAccSkipAccessChecks to disable use_fast_path
  // in interpreter_common.h
  let hookedMethodRemovedFlags = kAccFastInterpreterToInterpreterInvoke | kAccSingleImplementation | kAccNterpEntryPointFastPathFlag;
  if ((originalFlags & kAccNative) === 0) {
    hookedMethodRemovedFlags |= kAccSkipAccessChecks;
  }

  patchArtMethod(hookedMethodId, {
    accessFlags: ((originalFlags & ~(hookedMethodRemovedFlags)) | kAccCompileDontBother) >>> 0
  }, vm);

  const quickCode = this.originalMethod.quickCode;

  // Replace Nterp quick entrypoints with art_quick_to_interpreter_bridge to force stepping out
  // of ART's next-generation interpreter and use the quick stub instead.
  if (artNterpEntryPoint !== undefined && quickCode.equals(artNterpEntryPoint)) {
    patchArtMethod(hookedMethodId, {
      quickCode: api.artQuickToInterpreterBridge
    }, vm);
  }

  if (!isArtQuickEntrypoint(quickCode)) {
    const interceptor = new ArtQuickCodeInterceptor(quickCode);
    interceptor.activate(vm);

    this.interceptor = interceptor;
  }

  artController.replacedMethods.set(hookedMethodId, replacementMethodId);

  notifyArtMethodHooked(hookedMethodId, vm);
}

重点关注这一行，我们之前的猜想其实是正确的，在android9下jniCode其实就对应ptr_sized_fields_.data_，而quickCode对应entry_point_from_quick_compiled_code_

const replacementMethodId = cloneArtMethod(hookedMethodId, vm);
this.replacementMethodId = replacementMethodId;

patchArtMethod(replacementMethodId, {
  jniCode: impl,
  accessFlags: ((originalFlags & ~(kAccCriticalNative | kAccFastNative | kAccNterpEntryPointFastPathFlag)) | kAccNative | kAccCompileDontBother) >>> 0,
  quickCode: api.artClassLinker.quickGenericJniTrampoline,
  interpreterCode: api.artInterpreterToCompiledCodeBridge
}, vm);

至于interpreterCode，则会在patchArtMethod中由getArtMethodSpec去具体探测当前版本是否存在这个偏移字段，最后给出真正需要修改的字段

function patchArtMethod (methodId, patches, vm) {
  const artMethodSpec = getArtMethodSpec(vm);
  const artMethodOffset = artMethodSpec.offset;
  Object.keys(patches).forEach(name => {
    const offset = artMethodOffset[name];
    if (offset === undefined) {
      return;
    }
    const address = methodId.add(offset);
    const write = (name === 'accessFlags') ? writeU32 : writePointer;
    write.call(address, patches[name]);
  });
}

也就是说，add_test的ArtMethod对象记为A。真正的执行点是Frida clone了一份A，记为B，然后把B的entry_point_from_quick_compiled_code_字段修改为quickGenericJniTrampoline，而data修改为真正的implentation函数

关键的流程总结如下

A.quick_code = art_quick_to_interpreter_bridge
art_quick_to_interpreter_bridge 被 Frida inline patch
patched bridge -> Frida dispatcher
dispatcher 查 A -> B 映射
命中则 x0 = B，然后 br [B + quickCodeOffset]
B.quickCode = ClassLinker.quickGenericJniTrampoline
B.data_ = Frida NativeCallback implementation

通过对Frida的implementiaion对象解析，我们能进一步确认结论，0x79058FB3B0也就是find_replacement_method_from_quick_code返回的ArtMethod对象，才是真正的执行对象。

I  [Mapping] Frida replacement mapping observed from JS:
I  [Mapping] methods[0x78690c7400] = 0x787adbb570
I  [Mapping] original(A) ArtMethod=0x78690c7400 declaring_class_=0x15ff1c38 access_flags_=0x02000001 dex_code_item_offset_=0x000002b4 dex_method_index_=7 method_index_=574 hotness_count_=0 data_=0x0 quick_code=0x7884116aa0
I  [Mapping] original(A) data_: 0x0
I  [Mapping] original(A) quick_code: 0x7884116aa0 /system/lib64/libart.so+0x536aa0

I  [Mapping] replacement(B) ArtMethod=0x787adbb570 declaring_class_=0x15ff1c38 access_flags_=0x0a000101 dex_code_item_offset_=0x000002b4 dex_method_index_=7 method_index_=574 hotness_count_=0 data_=0x790573e048 quick_code=0x7138d010
I  [Mapping] replacement(B) data_: 0x790573e048 <anonymous>+0x48 perms=rwxp
I  [Mapping] replacement(B) quick_code: 0x7138d010 /system/framework/arm64/boot.oat+0x10d010


I  [Mapping] A access_flags=0x02000001
I    access_flags_: raw=0x02000001 java_flags=0x0001 runtime_flags=0x02000000 hidden_api=whitelist
I    access_flags_: kAccPublic|kAccCompileDontBother

I  [Mapping] B access_flags=0x0a000101
I    access_flags_: raw=0x0a000101 java_flags=0x0101 runtime_flags=0x0a000000 hidden_api=whitelist
I    access_flags_: kAccPublic|kAccNative|kAccCompileDontBother|kAccSingleImplementation

I  [Mapping] B data_/jniCode=0x790573e048 <anonymous>+0x48 perms=rwxp
I  [Mapping] B quickCode=0x7138d010 /system/framework/arm64/boot.oat+0x10d010
I  [Mapping] scanning references to A(original)=0x78690c7400

可以看到，真正的ArtMethod对象，access_flags为kAccPublic|kAccNative|kAccCompileDontBother|kAccSingleImplementation

而且jniCode不为0，同时quickCode应该是quickGenericJniTrampoline

但非常搞的是，data/jniCode指向的0x790573e048，并不可以查看， Frida 自己的 range 枚举会故意隐藏这块内存。但是直接 hexdump() 成功

0x79057fa048: ldr x16, #0x79057fa058
0x79057fa04c: adr x17, #0x79057fa048
0x79057fa050: br  x16
0x79057fa054: udf #0

检测思路

这里就不再往下追了，总而言之，这给了我进行Frida检测了新思路，虽然依赖于特定版本的Java层Hook，但它对自吐脚本，ssl pining bypass有着显著作用。

1. 检测方法的ArtMethod结构体，查看AccessFlags是否被篡改为kAccCompileDontBother等属性
2. 检测art_quick_to_interpreter_bridge是否被inline hook
